5083 H116 Aluminum Plate for Marine Structures and Industrial Equipment with Superior Corrosion Resistance

Name: 5083 H116 Aluminum Plate for Marine Structures and Industrial Equipment with Superior Corrosion Resistance
Brand: Wuxi Sylaith Special Steel Co., Ltd.
SKU: 1000- 7000 Series
Price: 20.00 USD
Availability: InStock

Brand Name:	Sylaith
Model Number:	1000- 7000 Series
MOQ:	1 Ton
Price:	Negotiable
Delivery Time:	7-14 days
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, MTC

Type:

Plate

Temper:

H116 / H321

Material Properties:

Rust Resistant, Hard, Forged, Super Hard

Thickness:

0.2mm-25.0mm (depending On Application).

Length:

Length Can Be Customized According To Requirements

Width:

20mm-2500mm (can Be Customized According To Requirements).

Application:

Solar Reflector, Wall, Furniture, Cabinets

Technique:

Cold Rolled/ Hot Rolled

Packaging Details:

Standard seaworthy package

Supply Ability:

50000 Ton Per Year

Highlight:

Marine Structures Aluminum Plate

Industrial Equipment Aluminum Plate

Corrosion Resistant Aluminum Plate

Product Description

5083 H116 Aluminum Plate for Marine Structures and Industrial Equipment Applications

Product Overview

5083 H116 aluminum plate is a high-strength aluminum alloy plate primarily composed of aluminum and magnesium. It offers excellent corrosion resistance, weldability, and mechanical strength, making it ideal for marine structures, pressure equipment, transportation components, and industrial fabrication.

Manufactured according to international standards including ASTM B209, this aluminum plate is available in various thicknesses, widths, and surface finishes to meet diverse engineering requirements.

Compared to general-purpose aluminum grades, 5083 H116 provides superior resistance to seawater corrosion and maintains stable performance under harsh environmental conditions.

Why Choose 5083 Aluminum Plate for Marine and Industrial Applications?

In marine and outdoor industrial environments, aluminum materials face several challenges:

Saltwater Corrosion: Marine structures require materials that resist chloride corrosion from seawater exposure. Standard aluminum alloys may degrade over time in humid, salty environments.
Strength Requirements: Large structures like ship components and pressure equipment need materials with sufficient mechanical strength while maintaining lightweight characteristics.
Welding Performance: Fabricated structures often require cutting and welding processes. Poor weldability can increase manufacturing difficulty and compromise structural reliability.

5083 H116 Aluminum Plate Provides Corrosion Resistance and Structural Strength

Magnesium Alloy Composition

The addition of magnesium enhances:

Corrosion resistance
Tensile strength
Marine environment durability

H116 Temper Treatment

The H116 temper provides:

Improved resistance to exfoliation corrosion
Suitable mechanical properties for marine applications
Better stability after forming and welding

Customized Manufacturing

Available processing services include:

Cutting
CNC machining
Bending
Welding
Surface treatment

Technical Specifications

Item	Specification
Product Name	Aluminum Plate
Alloy	5083
Temper	H116 / H321
Standard	ASTM B209 / EN 485
Thickness	1mm - 200mm
Width	1000mm - 2500mm
Length	Customized
Surface	Mill Finish / Polished
Density	Approx. 2.66 g/cm³
Tensile Strength	Approx. 275-350 MPa
Processing	Cutting, Bending, Welding
Application	Marine, Transportation, Industrial Equipment

Applications of 5083 Aluminum Plate

Marine Industry

Used for:

Ship hull structures
Deck panels
Offshore platforms
Marine equipment

Selected for its exceptional corrosion resistance in seawater environments.

Transportation Equipment

Applications include:

Tank trucks
Railway components
Vehicle structures

The lightweight property helps reduce overall structural weight.

Industrial Equipment

Commonly used in:

Pressure vessels
Chemical equipment
Storage tanks
Fabrication projects

How 5083 Aluminum Plate Performs in Industrial Applications

5083 aluminum plate achieves superior performance through its alloy structure:

Magnesium Strengthening

Magnesium elements increase the aluminum matrix strength while maintaining relatively low density.

Protective Oxide Layer

Aluminum naturally forms a thin oxide film on the surface, protecting the material from corrosion.

Lightweight Structure

Compared to steel materials, aluminum provides lower density, allowing engineers to reduce structural weight while maintaining required strength.

How to Select the Right Aluminum Plate

Alloy Grade Selection

Requirement	Recommended Grade
General fabrication	1060 / 1100
Corrosion resistance	5052 / 5083
Marine structure	5083
Machining parts	6061
High strength aerospace parts	7075

Temper Condition

Common options:

O: Soft condition, suitable for forming
H32: General corrosion-resistant applications
H116: Marine applications
T6: Heat-treated high strength applications

Thickness Selection

Choose thickness according to:

Structural load
Welding requirements
Processing method
Application environment

Frequently Asked Questions

Q1: What is the difference between 5083 and 6061 aluminum plate?

5083 provides better corrosion resistance, especially for marine environments. 6061 offers better machinability and higher strength after heat treatment.

Q2: Is 5083 H116 aluminum plate suitable for seawater applications?

Yes. 5083 H116 is widely used in marine structures because of its excellent resistance to seawater corrosion.

Q3: What standards are available for 5083 aluminum plate?

Common standards include ASTM B209, EN 485, and related international aluminum plate specifications.

Q4: Can aluminum plates be cut into customized sizes?

Yes. Suppliers can provide cutting, CNC machining, bending, and other customized processing services.

Q5: What is the MOQ for aluminum plate orders?

MOQ depends on alloy, size, and processing requirements. Industrial suppliers typically support trial orders and bulk production.

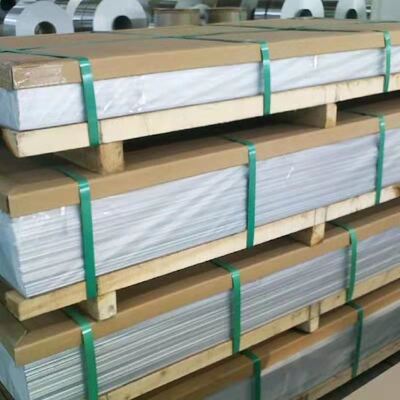

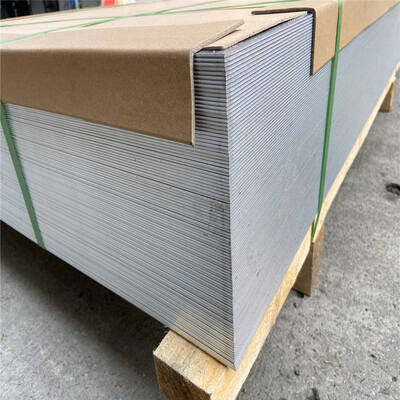

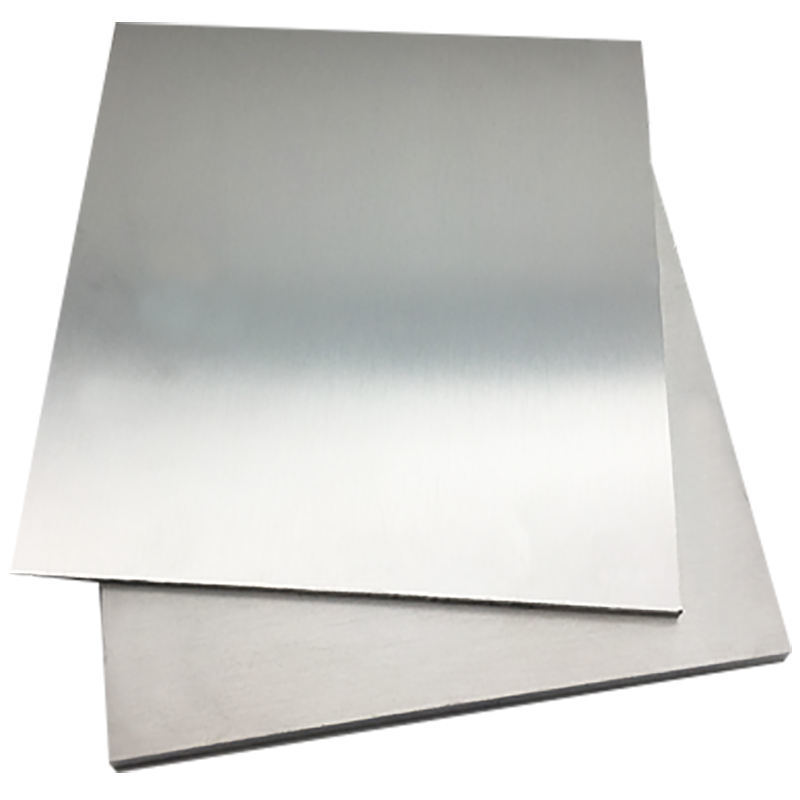

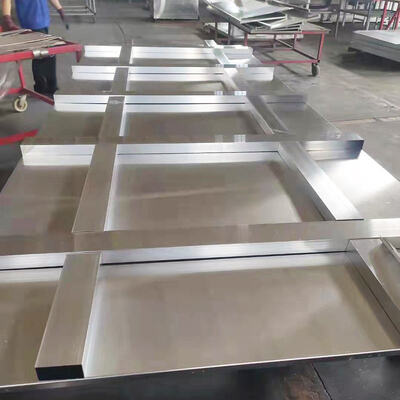

Product Gallery
