| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BAO STEEL |
| Certification: | ISO,BV |
| Model Number: | ASME A36 |
| Minimum Order Quantity: | 10 Tons |
| Price: | Negotiation |
| Packaging Details: | AS REQUIRED |
| Delivery Time: | 5-15 DAYS |
| Payment Terms: | L/C, T/T |
| Standard: | AISI, ASTM, BS, DIN, GB, JIS | Thickness: | 0.5-100MM |
|---|---|---|---|
| Width: | 1000mm-4000mm Or As Required | Length: | As Requried |
| Type: | Steel Plate | Application: | Ship Plate |
| Grade: | ASTM A516GR 70 | Package: | Standard Seaworthy Packaging Or As Customers' Request. |
| High Light: | Carbon Steel Sheet Metal Astm,A36 3mm Carbon Steel Sheet,1023 4mm Carbon Steel Sheet |
||
ASTM A36 Hot Rolled Mild Steel Checkered Plate ASTM A36 / A36M A283 GRC
Carbon structural steel plate refers to carbon steel with less than 0.8% carbon, which contains less sulfur, phosphorus and nonmetal inclusions than carbon structural steel, with better mechanical properties.
| Specifications | ASTM A36 / ASME SA36 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Thickness | 0.5-100mm |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Length | 2000-12000 mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | MS A36, (UNS K02600) |
| Grade | min | max |
|---|---|---|
| C | 0.25 | 0.290 |
| Cu | – | 0.20 |
| Fe | – | 98.0 |
| Mn | – | 1.03 |
| P | – | 0.040 |
| Si | – | 0.280 |
| S | – | 0.050 |
| Properties | Metric | Imperial |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
| Tensile Strength, Ultimate | 400 – 550 MPa | 58000 – 79800 psi |
| Tensile Strength, Yield | 250 MPa | 36300 psi |
| Elongation at Break (in 200 mm) | 20.0 % | 20.0 % |
| Elongation at Break (in 50 mm) | 23.0 % | 23.0 % |
| Modulus of Elasticity | 200 GPa | 29000 ksi |
| Bulk Modulus (typical for steel) | 140 GPa | 20300 ksi |
| Poissons Ratio | 0.260 | 0.260 |
| Shear Modulus | 79.3 GPa | 11500 ksi |
| STANDARD | MS A36 |
|---|---|
| WERKSTOFF NR. | 50049 3.1 |
| UNS | K02600 |

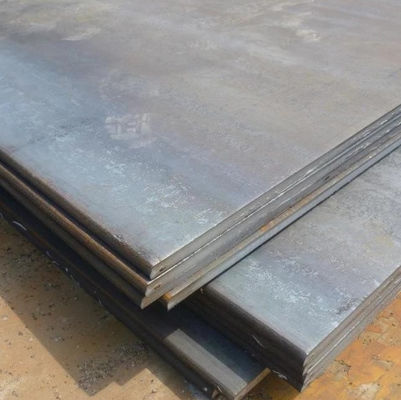

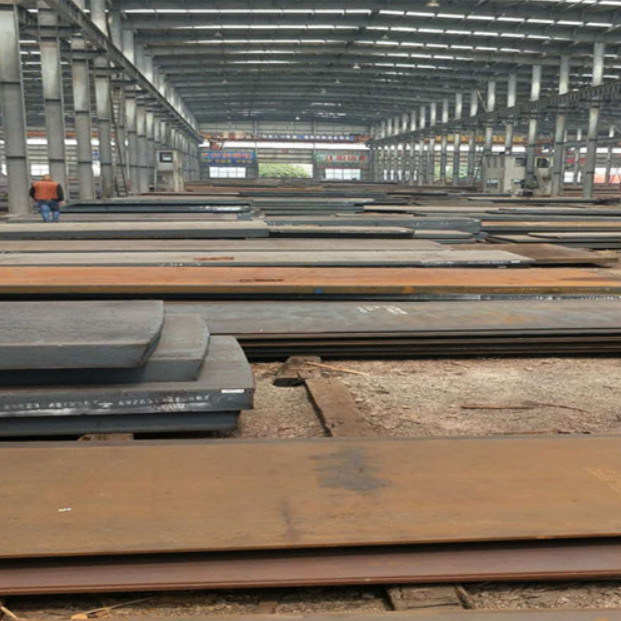

Product show
