| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | Ansteel Baostell, Wusteel |
| Certification: | ISO9001/CE/SGS |
| Model Number: | GR.A, GR.B, SGCC, CGCC, SPCC, SPHC, DX51D, ECT |
| Minimum Order Quantity: | 10Ton |
| Price: | Negotiation |
| Delivery Time: | 5-8weeks |
| Payment Terms: | 30%T/T for deposit, 70% balance before shipment or L/C at sight |
| Supply Ability: | 1000 Tons per month |
| Grade: | GR.A, GR.B, SGCC, CGCC, SPCC, SPHC, DX51D, ECT | Surface Treatment: | Galvanized |
|---|---|---|---|
| Processing Service: | Welding, Punching, Cutting, Bending, Decoiling | Width: | 30-1500mm |
| Zinc Coating:: | 30-275g/m2 | Thickness:: | 0.12-4.0mm |
| Application:: | Steel Construction, Household Appliances,automobile | Technique:: | Cold Rolled |
| High Light: | Roofing Sheet Galvanized Steel Coils,PPGI DX51 Galvanized Steel Coils,500mm Galvanized Steel Coils |
||

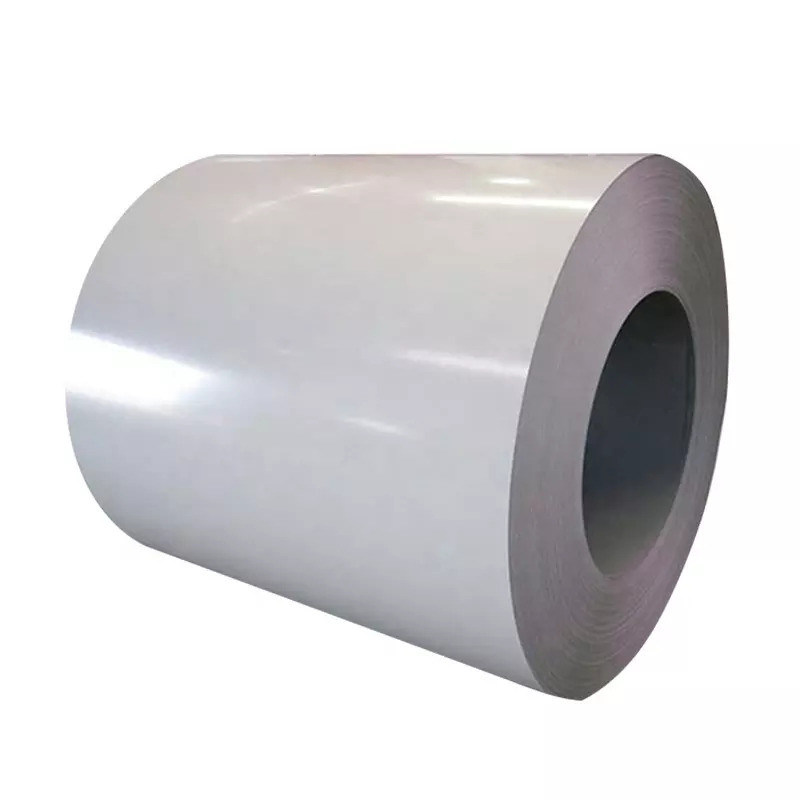

Hot Dipped Galvanized Steel Sheet in Coil (GI coil) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.
It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
| Name | High quality hot rolled zinc coated galvanized steel sheet in coil |
| Width: | 600-1250mm |
| customized width: | 800 / 914 / 1220 / 1250 / 1219 (regular width: 1,000 or 1,200mm) |
| Thickness: | available from 0.15MM to 1.2MM |
| Zinc coat : | 30g to 275g/m2 |
| Color: | Color according to RAL standard (including 210 colors) or Different Patterns (including 3D Wood imitation, Marble, Hairline, Brick, Camouflage series, Cloth, Flowers and Plants, etc). |
| Film: | Lacquer Coating thickness Top surface is 15-25 microns and the back is 5-7 microns or according to customer needs |
| Painting Type: | Paint coating type Polyester (PE), High-dbilityura Polyester (HDP), Silicon Modified Polyesters (SMP), Polyvinylidene Fluoride (PVDF), Easy-cleaning (EC) |
| Standard: | JIS G3302, JIS G3313, GB/T2518-88, GB11253-89, ASTM A1008-2000, EN10169 ETC |
| grades | GR.A, GR.B, SGCC, CGCC, SPCC, SPHC, DX51D, ECT |
| Supply capacity | 20,000 Metric Ton per month |
Packing & Delivery
Packing Details :
Export standard package, bundled or be required.
Delibery Time:
Accroding to order quantity
Recommend Shipping Ways:
By sea(Container or Bulk)
By air or express: small size sample
Container size :
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
