| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | Ansteel Baostell, Wusteel |
| Certification: | ISO9001/CE/SGS |
| Model Number: | inconel 600 601 625 718 800 |
| Minimum Order Quantity: | 10TON |
| Delivery Time: | 5-8weeks |
| Payment Terms: | 30%T/T for deposit, 70% balance before shipment or L/C at sight |
| Supply Ability: | 1000 Tons per month |
| Name: | Hot Rolled Astm Aisi Monel 400 Monel 500 Alloy Steel Wire Rod | Type: | Alloy Steel Wire Rod |
|---|---|---|---|
| Grade: | Monel/Inconel/Hastelloy/Nickel Alloy | Standard: | ASTM/JIS/DIN/GB |
| Wire Gauge: | 0.1-15mm | Surface Treatment: | Bright,Pickled,Hydrogen Annealing |
| Technique: | Cold Drawn | ||
| High Light: | inconel 600 spring wire,inconel 601 welding wire,incoloy 800 wire |
||

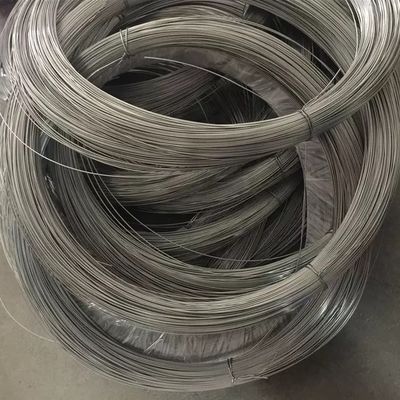

inconel 600 601 625 718 800 Wire Resistance Heating Alloy Steel Wire Rod Nickel
1.Description
It is face-centered cubic lattice structure for use at temperature up to 1425°C (2600°F).The Nickel-Chromium alloy is characterized by good corrosion resistance in the reduction condition,alkaline solution,inorganic acid and good resistance to oxidation at high temperatures.
Chemical Content(%)
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
| Inconel 600 |
Min. | 72 | 14 | 6 | ||||||
| Max. | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
Mechanical Properties
| Aolly status | Tensile strength Rm N/mm² |
Yield strength R P 0.2N/mm² |
Elongation A 5 % |
Brinell hardness HB |
Density g/cm³ |
Melting Point °C |
| Annealing treatment |
550 | 240 | 30 | ≤195 | 8.4 | 1370-1425 |
| Annealing treatment |
500 | 180 | 35 | ≤185 | 8.4 | 1370-1425 |
2.Features
Good corrosion resistance to the reduction, oxidation, Nitric and other media,good stress corrosion cracking resistance,good corrosion resistance of the dry chlorine and chlorine hydride,good mechanical property when below zero, room temperature and high temperature,good anti-creep rupture strength.
3.Usage
It widely used in following field:
4.Specification
| Round Wire | 0.03mm~10mm |
| Flat Wire(Ribbon) | thickness 0.1mm~1.0mm,width 0.5mm~5.0mm |
| Strip | thickness 0.2mm~3.0mm,width 0.5mm~200mm |
| Pipe | OD:0.2mm~120mm,Wall:0.05~70mm L:5mm~6000mm |
5.Grade Contrast
| ASTM(American Society for Testing and Materials) | UNS N06600 |
| DIN(Deutsche Industrie Normen) | W.Nr.2.4816,NiCrl 5Fe |
| BS(British Standards) | NA14 |
6.Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery.
