| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | Ansteel Baostell, Wusteel |
| Certification: | ISO9001/CE/SGS |
| Model Number: | 20#,45#,Q195,Q215,Q235B,Q345B, S235JR/S235/S355JR/S355/SS440/SM400A/SM400B |
| Minimum Order Quantity: | 10Ton |
| Price: | Negotiation |
| Delivery Time: | 5-8weeks |
| Payment Terms: | 30%T/T for deposit, 70% balance before shipment or L/C at sight |
| Supply Ability: | 1000 Tons per month |
| Name: | 25mm Steel 1035 C30 S35C 35# Forged Steel Round Bar High Quality Carbon Structural Steel With Good Plasticity Proper Str | Type: | Carbon Steel Profiles |
|---|---|---|---|
| Standard: | AiSi ATSM GB EN BS DIN JIS | Grade: | Q235/Q345/SS400/ST37-2 |
| Application: | Construction | Processing Service: | Bending, Welding, Punching, Decoiling, Cutting |
| Technique: | Hot Rolled Cold Rolled | ||
| High Light: | astm a572 round bar,bright mild steel round bar,en8 steel round bar |
||

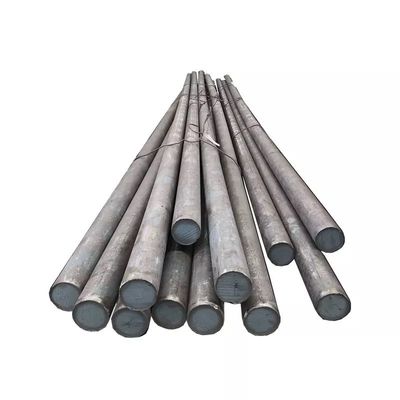

25mm Steel 1035 C30 S35C 35# Forged Steel Round Bar High Quality Carbon Structural Steel with Good Plasticity Proper Str
1: AISI 1035 Steel introduction
AISI 1035 is a low-cost, tough, medium-strength steel ideal for general-purpose applications, AISI 1035 is a medium-carbon alloy that can be normalized, hot-rolled, and water- or oil-quenched before tempering.
1035 steel has a chloride threshold value the critical chloride concentration above which the steel will begin to corrode four to five times higher than that of carbon steel. 1035 (HR) - Intermediate carbon higher in strength and hardness than low carbon steel. Used for studs, bolts etc. Water-hardening steels suitable for small parts of moderate strength. Used in levers, bolts, nuts, studs, and similar parts which are headed, upset, or extruded.
One of the most widely used precipitation hardening grades in the business. While soft and ductile in the solution annealed condition, it is capable of high properties with a single precipitation or aging treatment. Characterized by good Corrosion resistance, high harness, toughness and strength.
2: AISI 1035 Steel equivalent
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 699 | JIS G4051 | DIN (W-Nr.) EN 10083-2 |
AISI/ASTM ASTM A20 |
EN / BS |
| Grade | / | S35C | C35 | 1035 | / |
3: AISI 1035 Steel Chemical Composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Cu |
| S35C | 0.32 - 0.38 | 0.15 - 0.35 | 0.6 - 0.9 | 0.03 max | 0.035 max | 0.2 max | 0.2 max | 0.3 max |
| C35 | 0.32 - 0.39 | 0.10-0.40 | 0.5 - 0.8 | 0.045 max | 0.045 max | / | 0.4 max | / |
| 1035 | 0.32 - 0.38 | / | 0.60 - 0.90 | 0.04 max | 0.05 max | / | / | / |
4: AISI 1035 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: AISI 1035 steel overviews
| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block | Thickness 6mm-500mm |
|
| Width 20mm-1000mm |
||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | |
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | 1035 are used for Tools, Bulldozer edges, Drawing, Cold extrusion, Chain pins, Sealing rings,Track links, Nails, Couplings, Levers, Studs, Trusses, Gears, Bolts, Rods, Pins, Shafts, Axles. | |
6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
7. Alloy Round Bar Tolerance
| Diameter(mm) | Tolerance | ||
| Forged Steel Round Bar | 80-600 | Black Surface:0~+5 | Rough Machined or Turned:0~+3 |
| 650-1200 | Black Surface:0~+15 | Rough Machined or Turned:0~+3 | |
| Hot Rolled Steel Round Bar | 16-310 | Black Surface:0~+1 | Peeled:H11 |
| Cold Drawn Steel Round Bar | 6-100 | Black Surface:H11 | Peeled:H11 |
